Introducing GIB® Bracing Plates
Friday, 20 February 2026
By Gordon White
Winstone Wallboards is pleased to advise that GIB® Bracing Plates are available for sale from Monday 17th of February 2026.
GIB® Bracing Plates are 0.55 BMT galvanised metal bracing plates with a circular metal cut out. They act as a backing plate to support large penetration openings (i.e. holes greater than 100mm in diameter), through ceiling diaphragms and GIB Ezybrace® wall bracing elements which is a requirement in GIB EzyBrace® Systems.
Smaller penetrations (i.e. holes 100mm in diameter or smaller), or holes which are located outside of ceiling diaphragms or GIB Ezybrace® wall bracing elements do not require the use of a metal backing plate to support the penetration opening.
GIB® Bracing Plate Options
|
GIB® Sku |
Description |
Plates per Pack |
Typical Uses |
|
16097 |
Dimensions: 320x320mm Cut Out Diameter: 170mm |
5 |
Service and pipe penetrations Rangehoods and fireplace flues |
|
16096 |
Dimensions: 500x500mm Cut Out Diameter: 350mm |
5 |
HVAC and general ducting penetrations Service and pipe penetrations Rangehoods and fireplace flues |

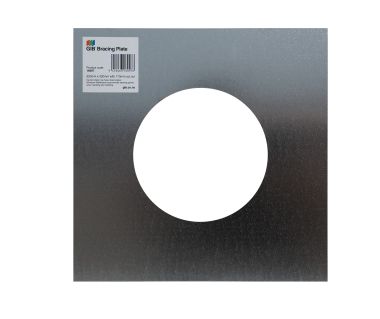

Image of GIB® Bracing Plate 16097
For more information refer to the GIB Ezybrace® Specification and Installation Manual available at www.gib.co.nz or contact the GIB® Helpline 0800 100 442.
